Smart grid and future

What is a smart grid?

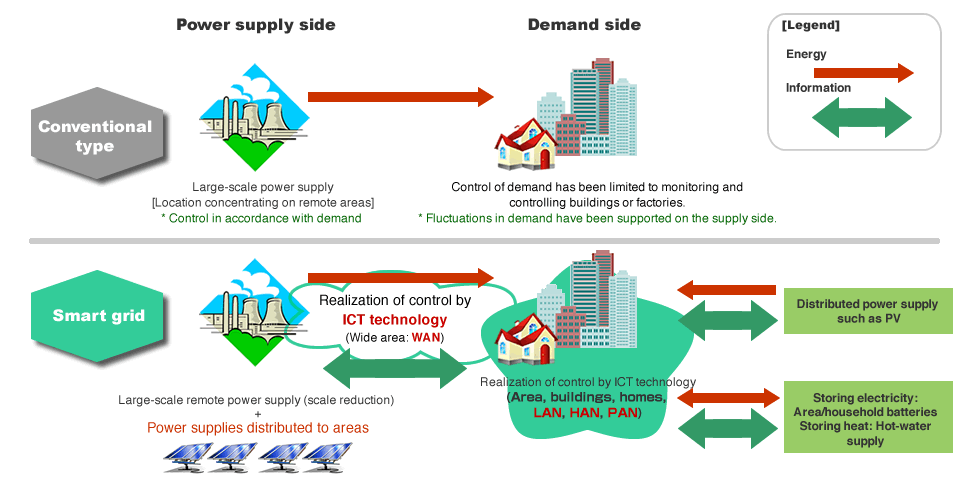

Conventional type and Smart grid
Ad-Sol Nissin's ubiquitous network business supports creating networks that monitor and control energy, making the best use of the short-distance communication technologies of ZigBee® and PLC.

Problems with the use of natural energy (distributed power supply)

For details about business and technical partnerships, contact the following:
Contact: Sales Department, Embedded Solution Business Division, Ad-Sol Nissin Corp.
+81-3-5796-3139
Inquiry form is available here:

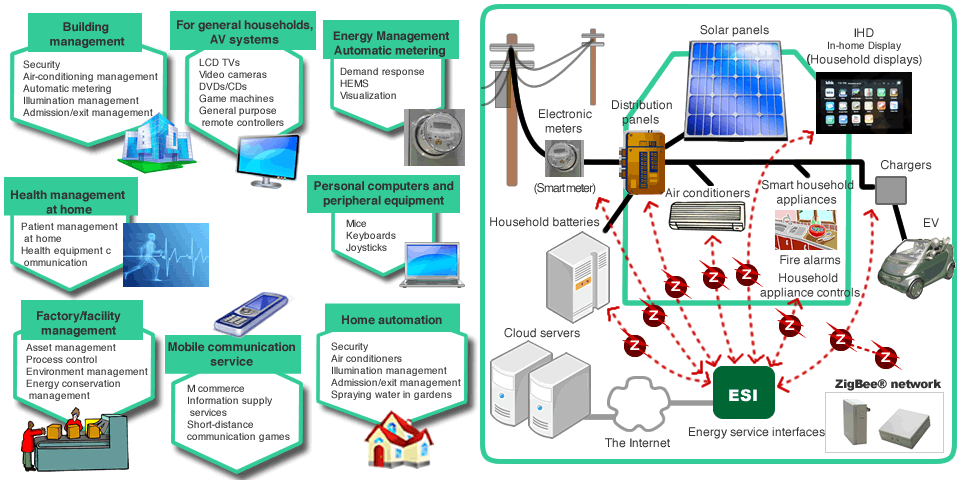

Main examples of ZigBee®: From market to home area network
home area network
Features of ZigBee®
  • NIST(US National Institute of Standards and Technology)specifies Smart Energy Profile studied by ZigBee Alliance for standard of communication for household energy control.
  • Interoperability based on public profiles standardized by the ZigBee Alliance (with more than 400 members)
    (Such as home automation, health care, and telecommunication service)
  • IEEE 802.15.4-based open communication technology/mesh routing, and multi-pop communication as standard
  • Low price, high quality, lower power consumption
  • Support for chips available from many semiconductor manufacturers, stabilizing supply party bouncy slide house
Features of Ad-Sol Nissin
Features of Ad-Sol Nissin

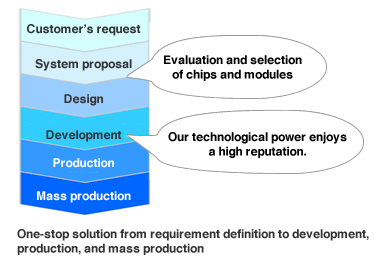

1) One-stop solution: Covers everything, from development/evaluation, trial production, and commercialization (mass production).
2) Flexible support of customized development by using Ad-Sol Nissin's solution/products
3) Rich experience in the development of chip modules for many vendors so that proposals best suited to customer needs can be made
4) Records of development of other short-distance wireless communication and power line communication systems, as well as ZigBee®
5) Offers communication performance evaluation tools for verifying communication conditions at installation site.

Leave it to Ad-Sol Nissin to develop a ZigBee® system, from selecting the modules best suited to your requirements to proposing/developing the entire system!
Ad-Sol Nissin's uLook series
Ad-Sol Nissin has started offering uLook-SE (smart energy profile, SEP1.1) supporting series in addition to the standard series.

Ad-Sol Nissin's uLook series

Quick realization of energy visualization without wiring
This system realizes visualization of energy and the environment quickly, at low cost, and with a high degree of flexibility by collecting sensor information regarding the current, power, temperature, and humidity through wireless or power line communications.

  • Operation can be started simply turning the power ON
    uLOOK does not require cumbersome network settings and new wiring construction. An optimum network can be created simply only installing a terminal and turning the power on.
  • Plus α that creates a comfortable network environment
1.Plus repeater terminal
Obstruction detouring/long-distance communication (multi-hop communication)
Communication range can be extended by installing an additional repeater terminal if direct communication cannot be established due to obstructions or distance.
Obstruction detouring/long-distance communication (multi-hop communication)
2.Plus power line communication terminal
Communication in and out of a shielded room (hybrid communication
Communication range can be extended by installing an additional power line communication terminal and using the existing power line at a location where wireless communication is difficult, such as in or out of a shielded room.
Communication in and out of a shielded room (hybrid communication)
  • Realization of visualization that meets your needs
    ・Energy can be managed from a remote location via the Internet.
    ・Event notification by mail
    ・Building automation
  • Batch management of collected data by ASP service
    ・uLOOK can be connected to "Web sensing", environment information collecting ASP service.
    You can manage the environment information at each site in batches for a reasonable monthly charge without having to install or operate a server.
    ・In addition, customization of the connection to your system can be supported.
uLook-SE product lineup

The ZigBee® tap power sensor has been approved by Smart Energy Profile 1.1 as the first product of the uLook-SE series. As a domestic specification, the PSE mark has also been obtained, so that the sensor can be used immediately.
For details of the equipment specifications, contact Ad-Sol Nissin now.


Terminal lineup


Terminal lineup

For details about business and technical partnerships, contact the following:
Contact: Sales Department, Embedded Solution Business Division, Ad-Sol Nissin Corp.
+81-3-5796-3139
Inquiry form is available here:
Products related to the ubiquitous business of Ad-Sol Nissin

[wireless communication / Sensor network]

fig-2211-90x90.jpgEnergy monitoring system
Visualizing collection and environment of sensor information by freely locating ZigBee® wireless sensor terminals
fig-19-90x90.jpgZigBee® communication checker
Communication status between two points of ZigBee® is scored in four levels of Excellent, Good, Fair, and Poor. In addition, channels can be set by using a rotary switch.
fig-211-90x90.jpgZigBee® Tag Solution
Managing the location of people and objects using ZigBee® wireless and wireless LAN
fig-201-90x90.jpgZigBee® communication environment evaluation tool
ZigBee® communication environment evaluation system is a support tool to evaluate the wireless communication environment and communication performance at the actual site in the design stage of a ZigBee® system or other product.

[Electric field communication]

fig-1711-90x90.jpgElectric field communication (human body communication) Touch Tag® starter kit
This kit lets you experience electric field communication (human body communication). The tag you are carrying, the electrode you touch, and the reader/writer communicate using the electric field around you as the medium. Data can be read from or written to the tag you are carrying via a personal computer.
fig-18-90x90.jpgElectric field communication (human body communication) Touch Tag ® hands-free authentication system

Ad-Sol Nissin's hands-free authentication combining electric field communication (human body communication) Touch Tag®, LF wireless communication, and ZigBee®
